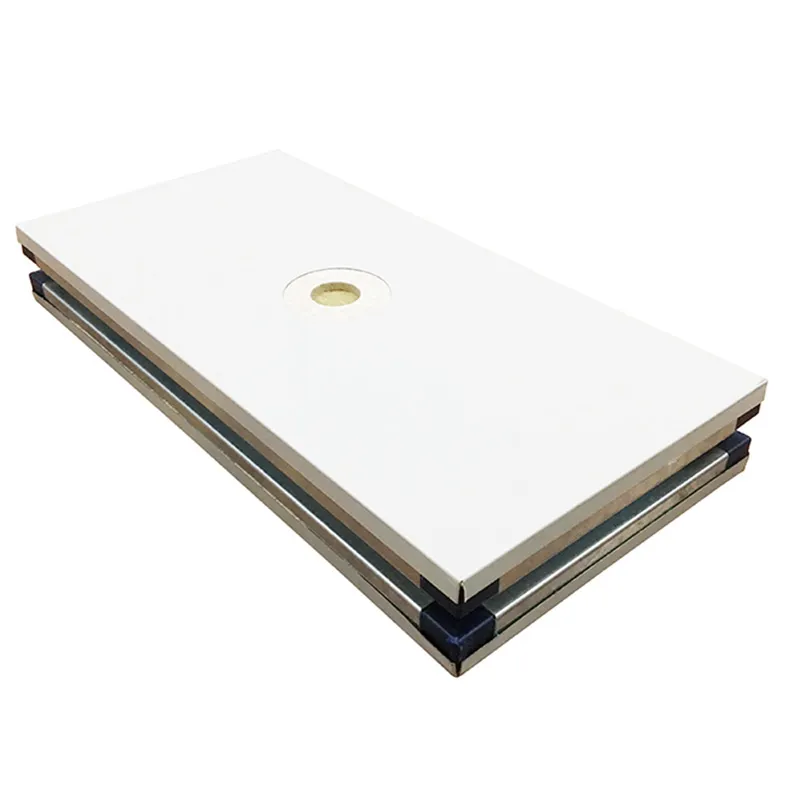

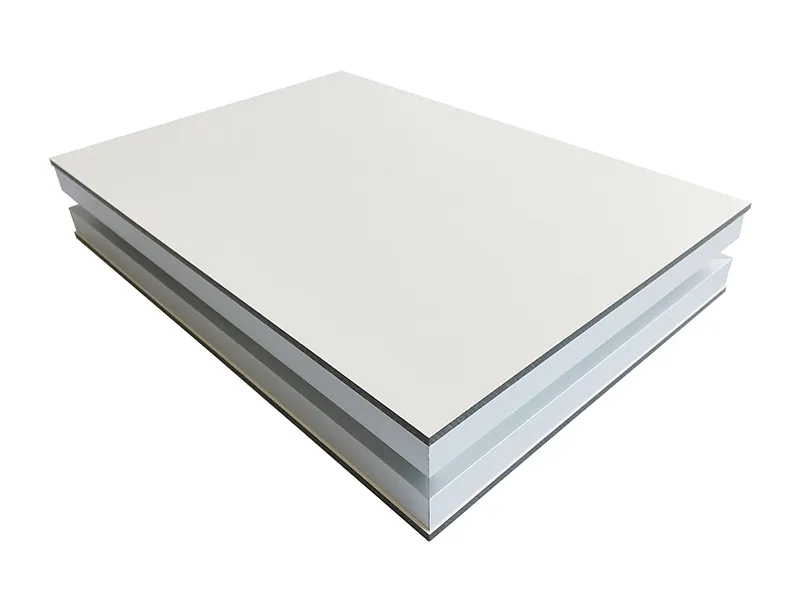

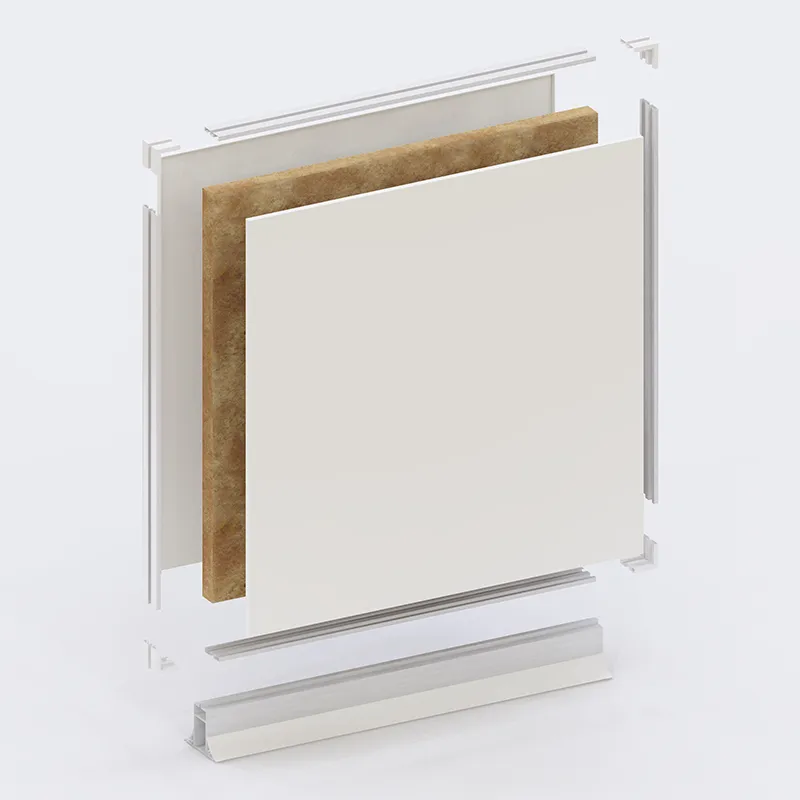

Clean room sandwich panel are main products in clean room engineering, which is not only flame retardant, soundproof and environmentally friendly. The Clean room panel is made up of two layers of m...
Rockwool sandwich panel HPL sandwich panel PU sandwich panel PIR sandwich panel Magnesium sandwich panel Pharmaceutical clean room panels sandwich panel clean room cleanroom wall partitions
With two decades of hands-on experience designing, certifying, and commissioning cleanrooms across semiconductor fabs, biopharma facilities, aerospace test labs, and precision manufacturing sites — I’ve seen how critical material integrity, dimensional stability, and regulatory traceability are in real-world environments. This clean room sandwich panel is engineered not for brochures, but for 24/7 operation under ISO Class 5–8 conditions, where surface non-shedding, fire performance (EN 13501-1 B-s1,d0), and long-term panel flatness directly impact yield, sterility assurance, and equipment uptime. It’s manufactured in a dedicated ISO 7-controlled production line with full batch traceability — from core density verification to HPL lamination pressure/temperature logs. No shortcuts. No “near-compliance.” Just repeatable, auditable performance.
The following table outlines verified physical and compliance parameters measured per EN 14509, ASTM E84, and ISO 14644-3 protocols. All values reflect third-party certified test reports (TÜV SÜD, SGS) — not manufacturer claims.
| Property | Value | Standard |
|---|---|---|

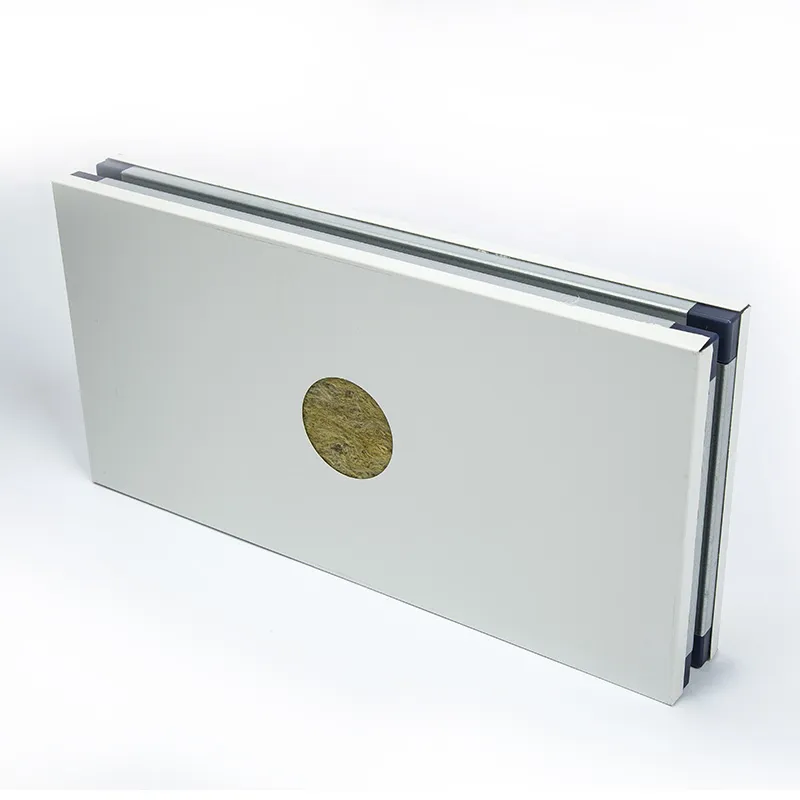

| Core Material | High-density mineral wool (≥120 kg/m³) or PIR foam (λ ≤ 0.022 W/mK) | EN 14509 |
| Face Sheets | HPL (High-Pressure Laminate) — 0.8 mm thick, phenolic resin-bonded, Class A surface | EN 438-3 |
| Fire Rating | B-s1,d0 (non-dripping, low smoke, no flaming droplets) | EN 13501-1 |
| Dimensional Tolerance | ±0.3 mm over 3 m length; flatness deviation ≤ 1.0 mm/m² | EN 14509 |

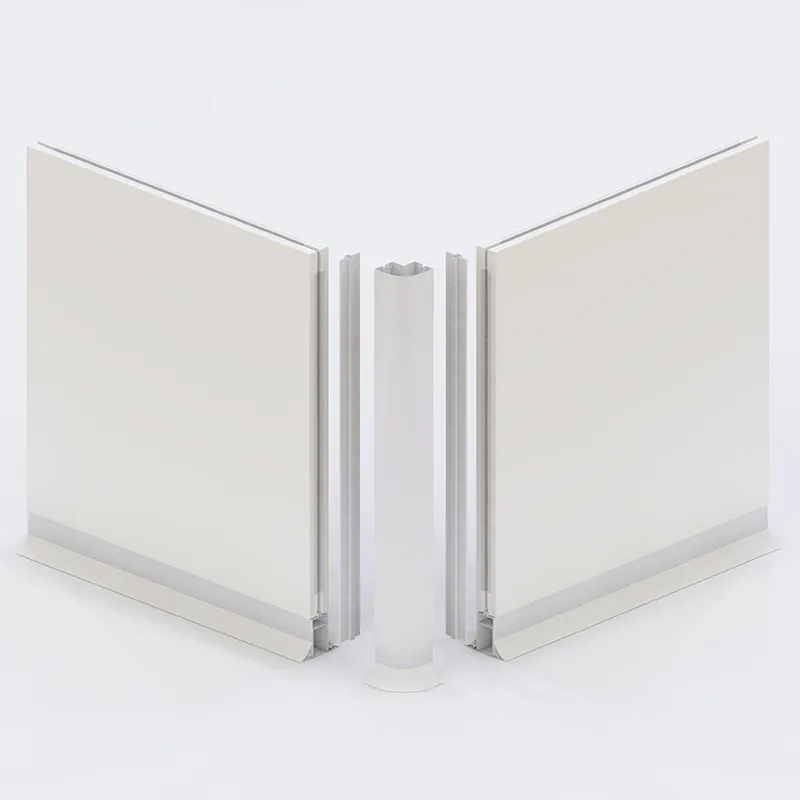

| Joint System | Continuous tongue-and-groove + concealed EPDM gasket; tested to 10⁵ cycles | In-house fatigue test |
| Surface Cleanability | Passes ISO 14644-10 wipe test (≤10 particles ≥0.5 µm/cm² after 50 wipes) | ISO 14644-10 |
In semiconductor & electronics manufacturing, consistent thermal mass and zero outgassing are non-negotiable — especially near photolithography tools and wafer handling zones. Our clean room sandwich panel eliminates micro-vibrations caused by panel flex during HVAC cycling, reducing particle generation at the source. For biopharma and life sciences, the seamless HPL surface resists biofilm adhesion and withstands repeated CIP/SIP cycles using hydrogen peroxide vapor (VHP) — validated per ASTM E2614. In aerospace and optical metrology labs, dimensional stability across 15–35°C ambient swings ensures alignment repeatability for interferometers and coordinate measuring machines. Food & beverage clients rely on its NSF/ANSI 51 certification for direct-contact surfaces, while automotive Tier 1 suppliers use it in battery module assembly rooms where electrostatic dissipation (ESD) variants (10⁶–10⁹ Ω/sq) prevent latent cell damage. Data centers deploy it for cold aisle containment walls — achieving >92% airflow containment efficiency per ASHRAE TC 90.4. And in new energy applications — particularly solar cell coating lines and EV battery dry rooms — the panel’s moisture resistance (<0.1% water absorption after 72h immersion) prevents delamination in <1% RH environments.
This isn’t about aesthetics or lowest bid — it’s about eliminating rework, avoiding validation delays, and protecting your process investment. We support engineering teams with full IFC-compatible BIM models (Revit), structural load calculations for seismic zones, and joint-sealing protocols approved by leading cleanroom consultants in Spain. Whether you’re specifying for a new fab expansion or retrofitting an aging biologics suite, our team provides on-site technical review — not sales pitches. You’ll receive certified material test reports, weld seam inspection records, and laminated surface abrasion logs before shipment. No surprises at commissioning. Just predictable, compliant, durable enclosure performance.
We understand that your project timeline, regulatory submission deadlines, and integration complexity drive decisions — not catalog pages. That’s why we embed cleanroom engineers directly into your design phase: reviewing architectural drawings for panel modularity, validating HVAC interface points, and co-developing installation sequences with your GC to avoid clashes with MEP rough-ins. For projects requiring rapid deployment, we offer fully integrated solutions anchored to Spain prefabricated cleanrooms — factory-assembled, pre-tested, and shipped as complete wall-ceiling modules. For flexible, reconfigurable spaces, our Spain modular cleanroom systems deliver tool-ready environments in under 8 weeks — including ISO classification testing and GMP documentation packages. We don’t sell panels. We help engineering teams de-risk cleanroom delivery — quietly, competently, and without compromise.
Contact us today for a free quote.
