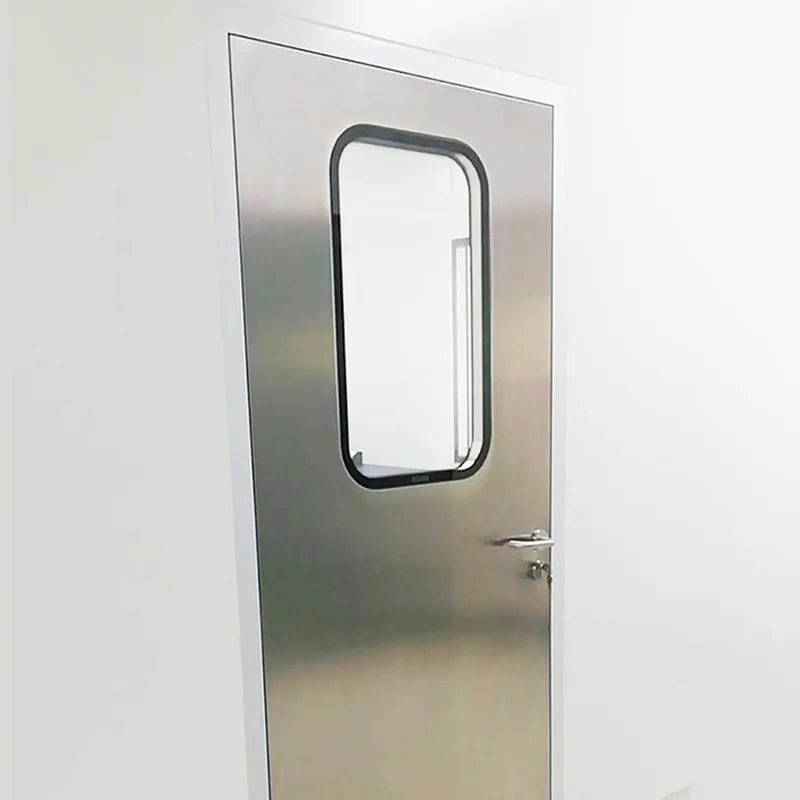

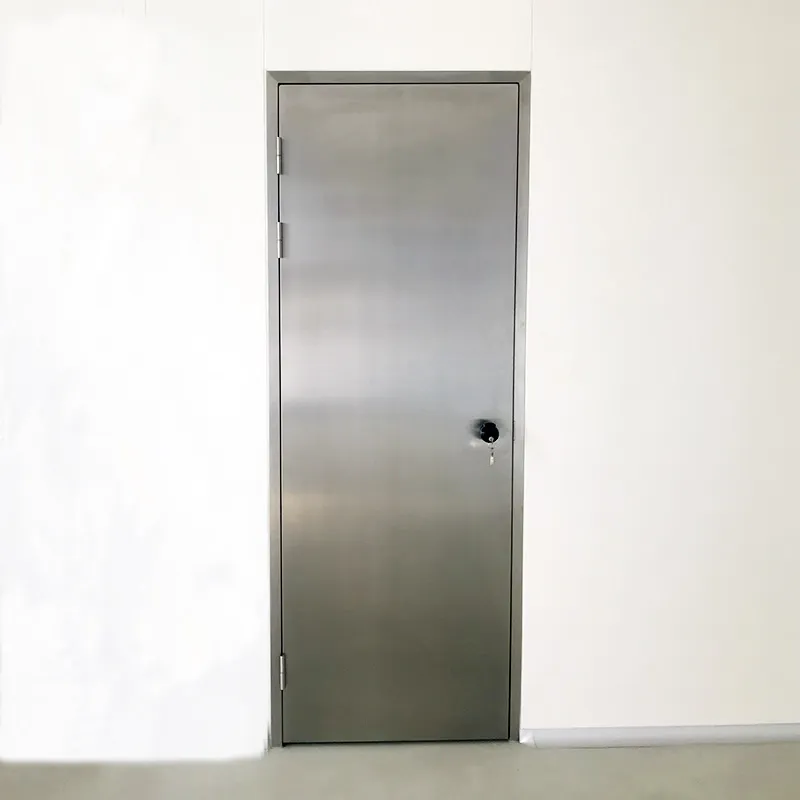

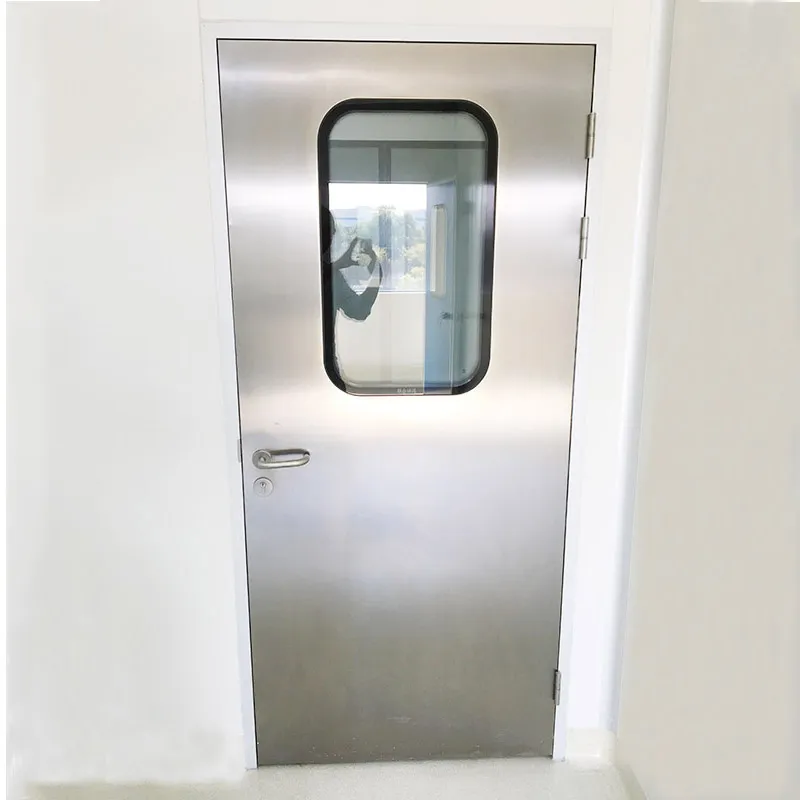

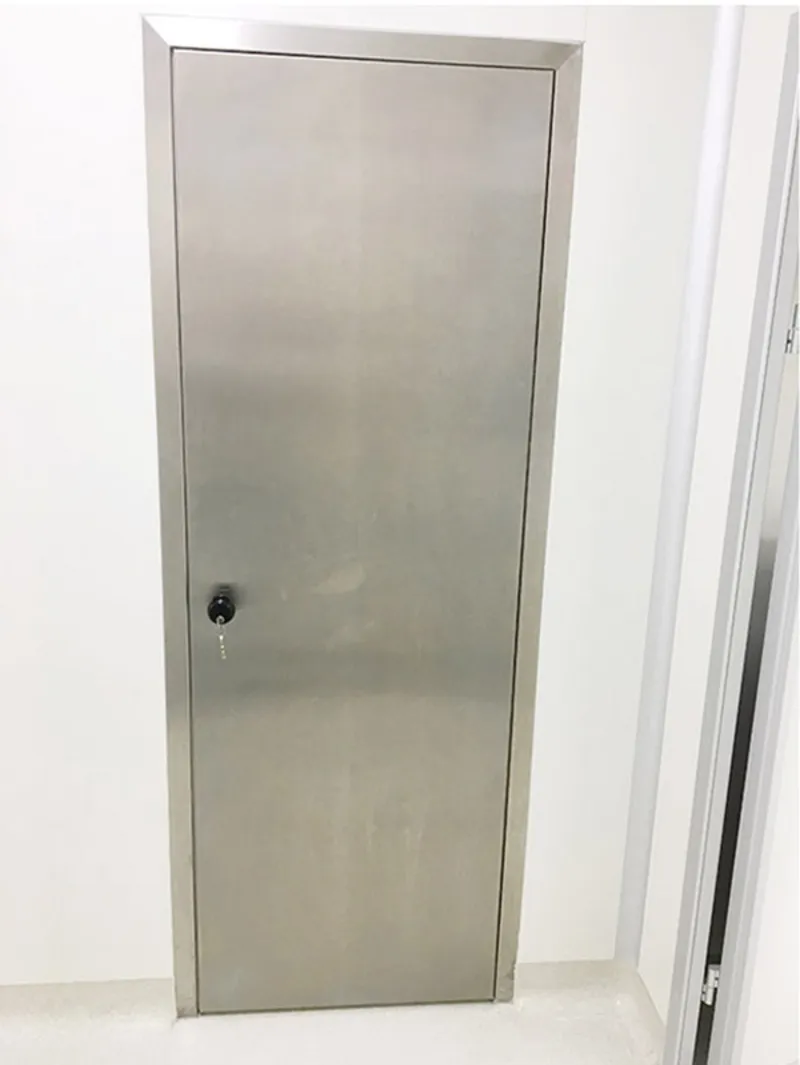

Clean room stainless steel door is suitable for purification workshop, hospital, pharmaceutical factory, food factory and other occasions with occasionally cleansing requirements.
clean room stainless steel door, stainless steel clean room door, stainless steel clean room doors, stainless steel clean room windows, Stainless steel cleanroom doors, Stainless steel door, Stainless steel door Design, Stainless steel door Factory, stainless steel insulated clean room door
With over two decades of hands-on experience designing, specifying, and commissioning cleanroom infrastructure across semiconductor fabs, biologics manufacturing suites, aerospace test labs, and regulated food production facilities, I’ve seen how a single component—like the Spain prefabricated cleanrooms—can only perform to its full potential when every interface is engineered with equal rigor. Among those interfaces, the clean room stainless steel door is rarely the headline—but it’s often the first point of failure in pressure integrity, particle control, and long-term maintainability.
This isn’t about aesthetics or generic “stainless steel doors.” It’s about purpose-built hardware that meets ISO 14644-1 Class 3–8 environments while supporting real-world operational demands: frequent cycling in high-throughput wafer sort areas; zero corrosion risk near aggressive sterilants in biotech isolators; ESD-safe grounding in precision optics assembly; or thermal stability in chilled pharmaceutical fill-finish suites. Our stainless steel clean room door series answers those needs—not as an off-the-shelf catalog item, but as a system-integrated solution developed alongside Spain modular cleanroom systems. Each unit is fabricated to align precisely with wall panel thicknesses, gasket compression profiles, and actuation timing—ensuring seamless integration whether deployed in a stainless steel insulated clean room door configuration for temperature-sensitive battery cell assembly or a flush-mounted, non-handed variant for sterile corridor access in cell therapy labs.
We also understand that doors don’t operate in isolation. They’re part of a coordinated ecosystem: adjacent to stainless steel clean room windows for operator visibility without compromising containment; flanked by stainless steel lab tables and integrated with stainless steel lab sink zones where splash resistance and cleanability are non-negotiable. That’s why our Stainless steel cleanroom doors share material specifications (316L electropolished finish), weld standards (full-penetration TIG, passivated), and surface Ra ≤ 0.4 µm with our stainless steel laboratory tables, stainless steel laboratory sinks, and other core process furniture—enabling consistent cleaning validation and eliminating galvanic mismatch risks in humid or saline-rich environments like coastal food & beverage plants or marine-grade electronics testing bays.
| Parameter | Standard Configuration | Optional Upgrades |
|---|---|---|
| Stainless steel door Material | 304 stainless steel frame & skin (electropolished, Ra ≤ 0.4 µm) | 316L for saline/halogen exposure (e.g., offshore data center cooling rooms, coastal food processing) |
| Core Construction | Full aluminum honeycomb core (rigidity + lightweight) | stainless steel insulated clean room door: Polyurethane foam core (λ = 0.022 W/m·K), fire-rated to EN 13501-2 Class B-s1,d0 |
| Sealing System | Dual-loop silicone gasket (ISO Class 5 compatible, 10⁵ cycles life) | Triple-seal option with magnetic intermediate barrier (for ISO Class 3–4 in EU GMP A/B zones) |
| Hardware Integration | ESD-safe push latch (10⁶ Ω surface resistivity), concealed hinges | Automated sliding (brushless DC motor), interlocked with HVAC & alarm systems |
| Compliance & Certifications | ISO 14644-1 compliant installation tolerance ±0.3 mm; FDA 21 CFR Part 110/117 ready; UL 9V listed | ASME BPE 2023 certified (for biopharma); CE-marked for Machinery Directive 2006/42/EC |
In Spain’s expanding semiconductor cluster, our stainless steel clean room doors are installed at critical airlock boundaries between lithography tool bays (ISO Class 4) and metrology corridors (ISO Class 5). Here, the Stainless steel door Design prioritizes minimal particle shedding during 200+ daily cycles—achieved via self-lubricating hinge bushings and zero-exposed fasteners. In contrast, a biotech CMO in Penang uses the same base platform configured as a stainless steel insulated clean room door with integrated view window—allowing visual verification of gowning compliance without breaking containment. The shared Stainless steel door Factory traceability ensures batch-level documentation for audit readiness under PIC/S PE 009-16.
For aerospace MRO facilities servicing jet engine test cells, thermal stability matters more than speed: our doors maintain dimensional integrity from –20°C to +60°C ambient swings—critical when paired with stainless steel laboratory tables used for optical alignment of turbine blade inspection rigs. In food-grade cleanrooms producing probiotic powders, the stainless steel lab sink and stainless steel laboratory sinks are routinely sanitized with caustic soda; our matching Stainless steel door surfaces withstand repeated exposure without micro-pitting or chloride-induced stress cracking.
Whether you're integrating into a turnkey Spain prefabricated cleanrooms project or retrofitting legacy HVAC zones in a Tier-III data center’s battery backup room, this clean room stainless steel door delivers repeatable performance—not theoretical specs. It’s not just hardware. It’s continuity of control.
Contact us today for a free quote.
