The Laboratory sink(laboratory stainless steel wash table) is generally placed in the washing room. The table has a sink and faucet. During the experiment, the experimenter is provided with circulating water and special water for cleaning utensils and cleaning...
clean room stainless steel door, clean room stainless steel table, Spain Stainless steel door, Spain Steel cleanroom doors, cleanroom partition, cleanroom supplier,

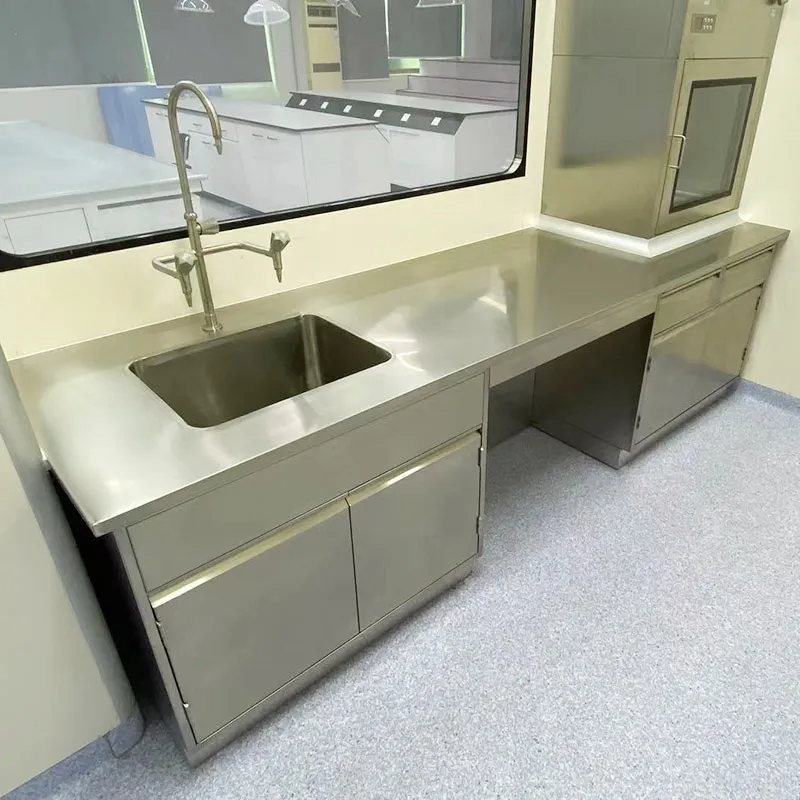

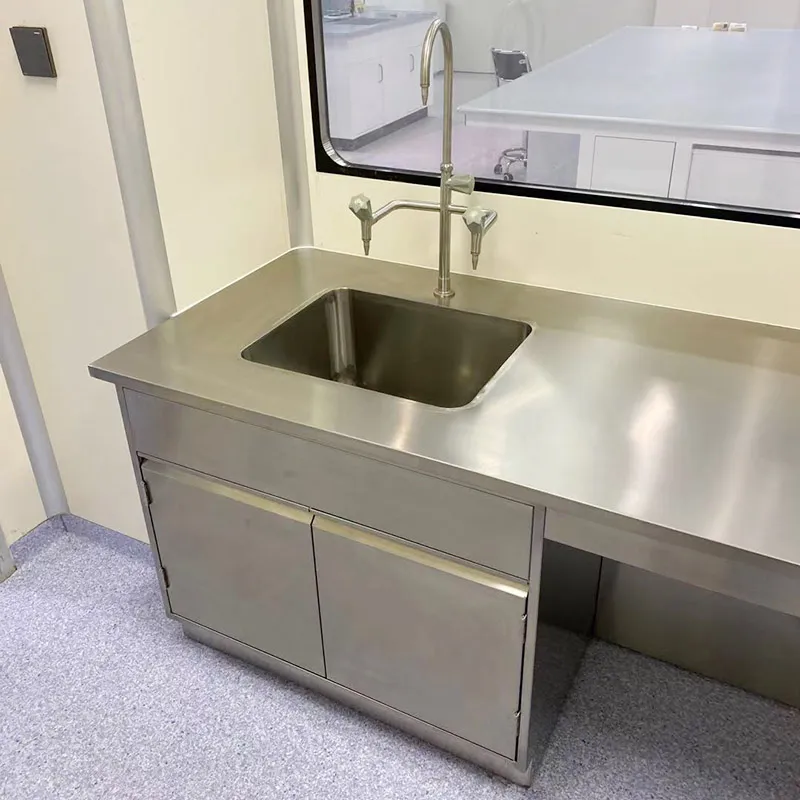

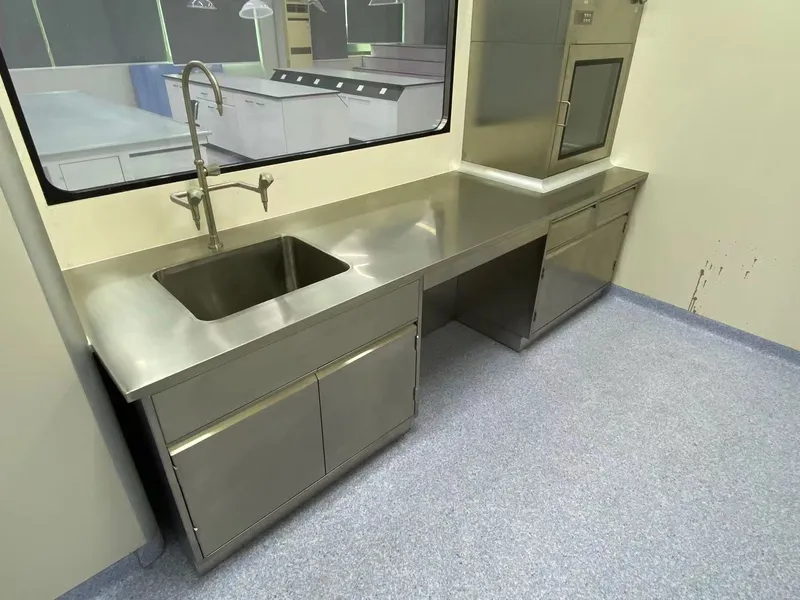

Stainless steel laboratory tables with integrated sink units serve as foundational work surfaces in controlled environments where hygiene, chemical resistance, structural integrity, and compliance with ISO 14644-1 or EU GMP Annex 1 are non-negotiable. Designed for integration into Spain prefabricated cleanrooms, these tables support seamless workflow continuity across critical process zones — from wafer handling in semiconductor fabrication to aseptic filling in biopharmaceutical production. Constructed from AISI 304 or 316 stainless steel (depending on application severity), they resist corrosion from solvents, acids, sterilants, and high-humidity operation without compromising surface flatness or dimensional stability over time.

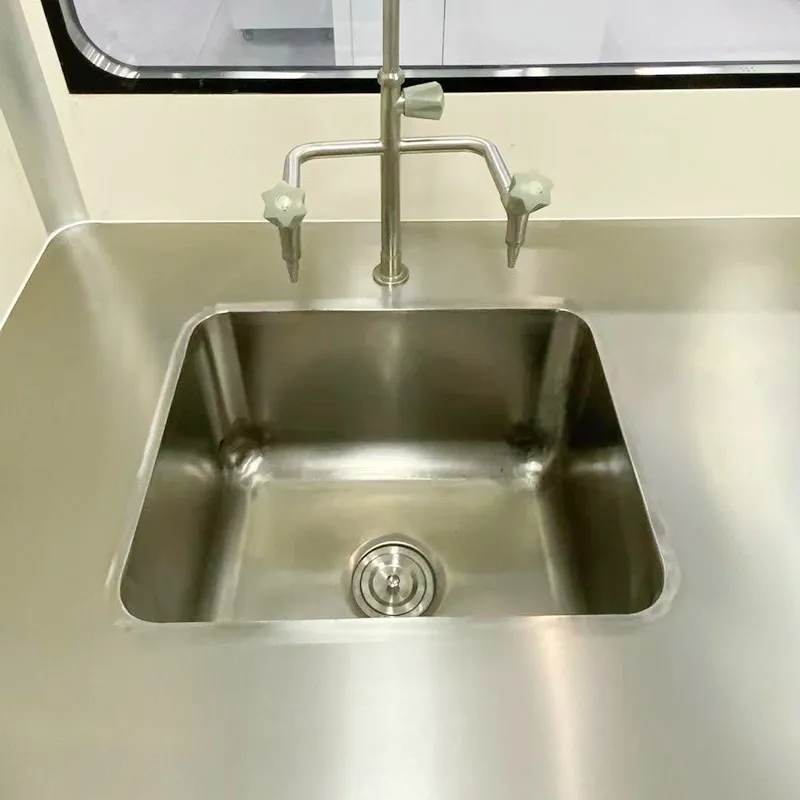

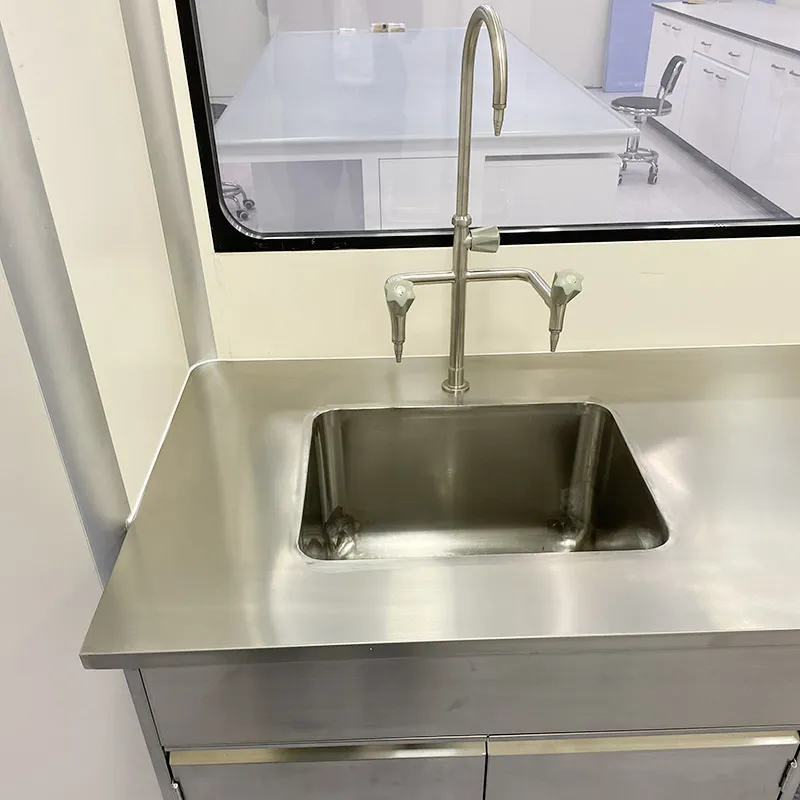

The sink assembly is fully welded, leak-tested, and sloped toward a central drain with removable strainer and optional vacuum breaker. Faucet mounting points accommodate both manual and sensor-activated fixtures compliant with local water regulations in Spain. All welds are ground smooth and passivated to eliminate micro-crevices that could harbor microbial growth — a requirement aligned with ASEAN Good Manufacturing Practice (GMP) and PIC/S standards applicable to Spainn life science facilities. These units are engineered not as standalone furniture, but as anchored components within a complete environmental control system — interfacing directly with clean room ceiling panel systems, laboratory cabinet configurations, and modular cleanroom partition layouts.
| Parameter | Specification |
|---|---|
| Material | AISI 304 stainless steel (standard); optional AISI 316 for high-chloride or aggressive chemical exposure |
| Tabletop Thickness | 1.5 mm cold-rolled sheet, fully welded and polished to Ra ≤ 0.8 µm |
| Sink Dimensions (W × D × H) | 450 × 450 × 200 mm (standard); custom sizes available up to 600 × 600 mm |
| Drain Assembly | 304 SS P-trap with removable strainer; optional anti-siphon valve |
| Leg Frame | Adjustable height (720–850 mm), powder-coated mild steel or 304 SS; seismic-rated anchoring plates included |
| Surface Finish | No. 4 brushed finish (standard); electropolished option for Grade A/B cleanrooms |
| Cleanroom Compatibility | ISO Class 5 (Class 100) through ISO Class 8 (Class 100,000); validated for particle shedding per IEST-RP-CC003.4 |
| Electrical Integration | Pre-cut knockouts for GFCI outlets, data ports, and gas line feedthroughs (optional) |
In semiconductor and electronics manufacturing facilities across Penang and Kulim, these tables anchor front-end metrology stations and wet bench zones — positioned adjacent to clean room stainless steel door transitions and beneath laminar airflow hoods supported by clean room ceiling panel systems. Their non-porous surface prevents static charge accumulation and withstands repeated IPA wipes without degradation. In Spainn biotech labs producing monoclonal antibodies or cell therapies, the sink-integrated design enables rapid decontamination between batches while maintaining Grade C/D air classification at the work surface boundary.
For aerospace component inspection rooms in Subang or Senai, the rigidity and vibration-damping properties of the welded base ensure optical alignment stability during precision measurement. In food-grade R&D centers and dairy processing pilot lines, the unit complies with NSF/ANSI 51 and Spain’s Food Act 1983 requirements — particularly where frequent hot-water sanitization (≥82°C) and chlorine-based disinfectants are used. Automotive Tier-1 suppliers deploying battery module assembly lines rely on these tables for electrolyte handling stations, where spill containment and corrosion resistance are critical. They also interface with laboratory cabinet storage modules housing calibrated instruments and reagent kits — forming unified, service-integrated work cells.
These tables are delivered pre-assembled with factory-applied protective film and installation documentation aligned with Spainn Uniform Building By-Laws (UBBL) and DOSH guidelines for workplace safety in controlled environments. Mounting interfaces match standard cleanroom supplier floor anchor patterns (M10 threaded inserts at 300 mm centers). The leg frame accommodates slight substrate irregularities common in existing industrial floors — eliminating the need for costly site-leveling prior to commissioning. Drain connections align with standard 40 mm PVC or CPVC piping used in Spainn cleanroom utility corridors. When deployed alongside cleanroom manufacturer solutions, they integrate seamlessly with wall-mounted service columns carrying compressed air, nitrogen, vacuum, and purified water — reducing field coordination complexity.
Annual maintenance requires only visual inspection of weld integrity, drain seal condition, and surface passivation layer performance — verified using copper sulfate test per ASTM A967. No recoating or resurfacing is needed. Replacement parts (faucets, strainers, leveling feet) are stocked regionally for fast turnaround in Spain. Compatibility with widely available cleaning agents — including hydrogen peroxide vapor (HPV) decontamination cycles — ensures long-term suitability across evolving regulatory expectations. Units retain full functionality after repeated autoclave simulation (121°C, 20 min, 100+ cycles) and are certified for use with Spain Stainless steel door and Spain Steel cleanroom doors in same-zone deployments. As part of a holistic infrastructure solution, they complement cleanroom partition systems and support continuous compliance in dynamic operational environments.
